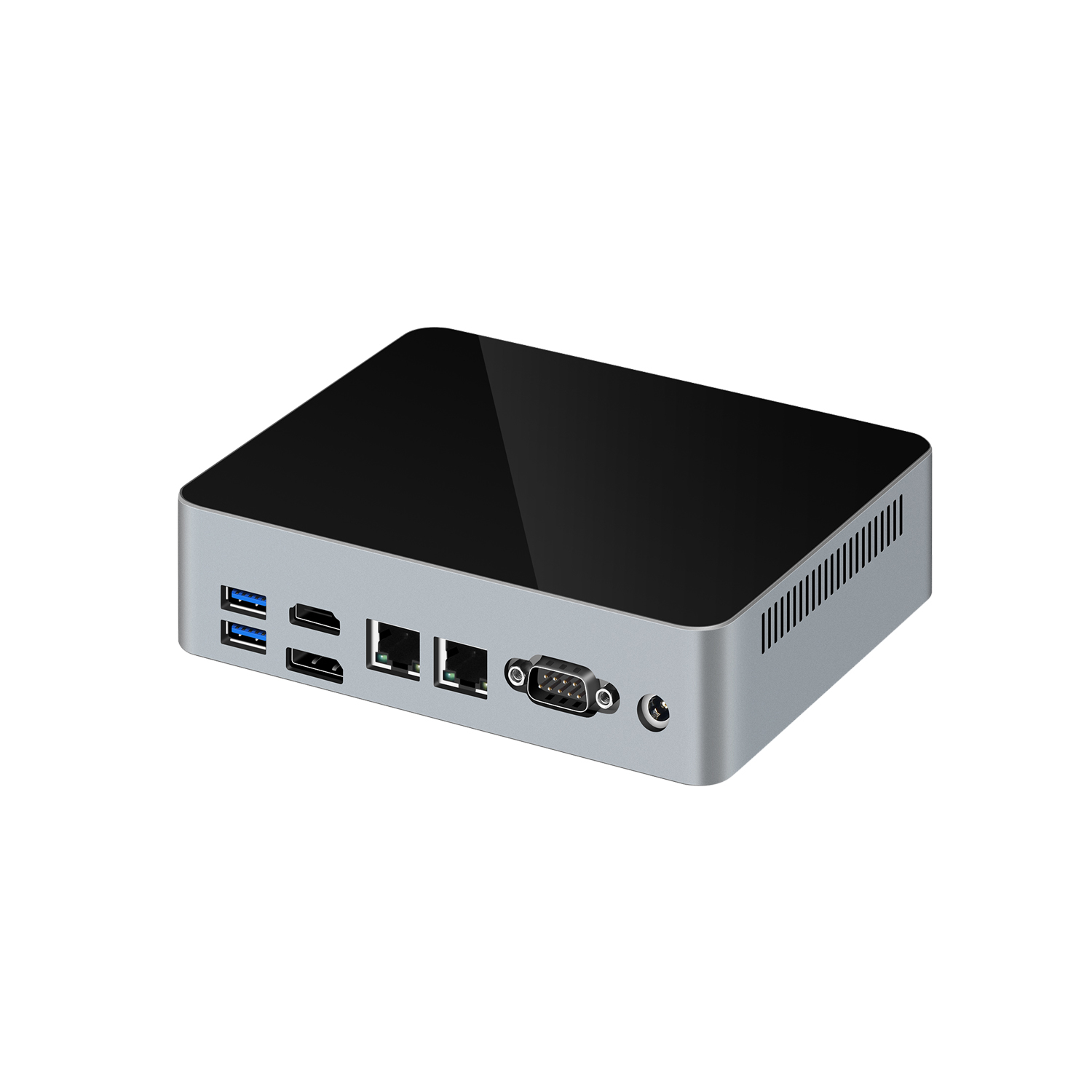

SNX 5310

Processor & Graphics

Processor Options

• Intel® Core™ Alder Lake-U

  • Core™ i3-1215U

  • Core™ i5-1235U

  • Core™ i7-1255U

• Intel® Core™ Raptor Lake-U

  • Core™ i3-1315U

  • Core™ i5-1335U

  • Core™ i7-1355U

These processors offer an excellent balance of performance and power efficiency for high-resolution multimedia workloads.

Graphics

• Intel® UHD Graphics (Core™ i3 processors)

• Intel® Iris® Xe Graphics (Core™ i5 & i7 processors)

• Hardware-accelerated decoding for smooth 4K UHD video playback

Memory

• 2 × SO-DIMM DDR4 slots

• Maximum supported capacity: 64GB

• Suitable for advanced signage software and multi-content playback

Storage

• 1 × M.2 2280 slot (SATA / NVMe SSD)

• 1 × M.2 2280 slot (NVMe SSD)

• Supports high-speed storage for fast boot times and responsive media loading

Display Output

• 3 × HDMI 2.0b

  • Supports up to 4K @ 60Hz

• 1 × DisplayPort 1.4a

  • Supports up to 4K @ 60Hz

Supports up to four independent displays, ideal for video walls and large-format billboard control.

Networking

• 2 × 2.5 Gigabit Ethernet (RJ45)

  • Intel® I225-V / I226-V controllers

• Designed for high-bandwidth content distribution and network redundancy

Wireless & Cellular Connectivity

• Wi-Fi

  • M.2 2230 E-Key slot

  • Supports Wi-Fi 5 (802.11ac) and Wi-Fi 6 / 6E (802.11ax)

• 4G LTE

  • Mini PCIe slot for LTE module

  • Onboard SIM card slot

I/O Interfaces

Front I/O

• Power Button

• Microphone Input

• Audio Output

• 4 × USB 3.2 Gen 2

• 1 × USB Type-C

Rear I/O

• 2 × 2.5GbE LAN

• 3 × HDMI 2.0b

• 1 × DisplayPort 1.4a

• 2 × USB 2.0

Side I/O

• 2 × COM Ports

  • RS-232 / RS-485 (jumper selectable)

BIOS & System Management

• UEFI BIOS

• Wake-on-LAN

• PXE Boot

• Automatic power-on after power failure

These features enable remote management and unattended 24/7 operation across large signage networks.

Power

• AC Input: 100–240V

• DC Output:

  • 19V / 3.42A

  • 19V / 4.74A

Mechanical Specifications

• Dimensions: 174 × 125 × 41 mm

• Chassis Material: Metal

• Compact, durable design optimized for thermal performance and long service life

Mounting Support

• VESA Mount: 70 × 70 mm / 100 × 100 mm

• Suitable for behind-display, wall-mount, or enclosure installations

Environmental Specifications

• Operating Temperature: −20°C to +55°C

• Designed for commercial and semi-industrial environments

Operating System Support

• Windows® 11

• Windows® 10

• Linux

Accessories (Included)

• AC Power Adapter

• HDMI Cable

• VESA Mount Bracket

• Wi-Fi Antennas

Packaging Information

• Net Weight: 0.98 kg per unit

• Gross Weight: 1.88 kg per unit
  (Includes PSU, VESA mount, HDMI cable, and accessories)

Carton Packaging

• 10 units per carton

• Carton Weight: 20.0 kg

• Carton Size: 53 × 23.5 × 35.5 cm

Typical Applications

• Digital billboards & LED displays

• Video walls & multi-screen signage

• Retail & shopping mall displays

• Transportation & airport signage

• Corporate communication systems

• Industrial HMI & information terminals
