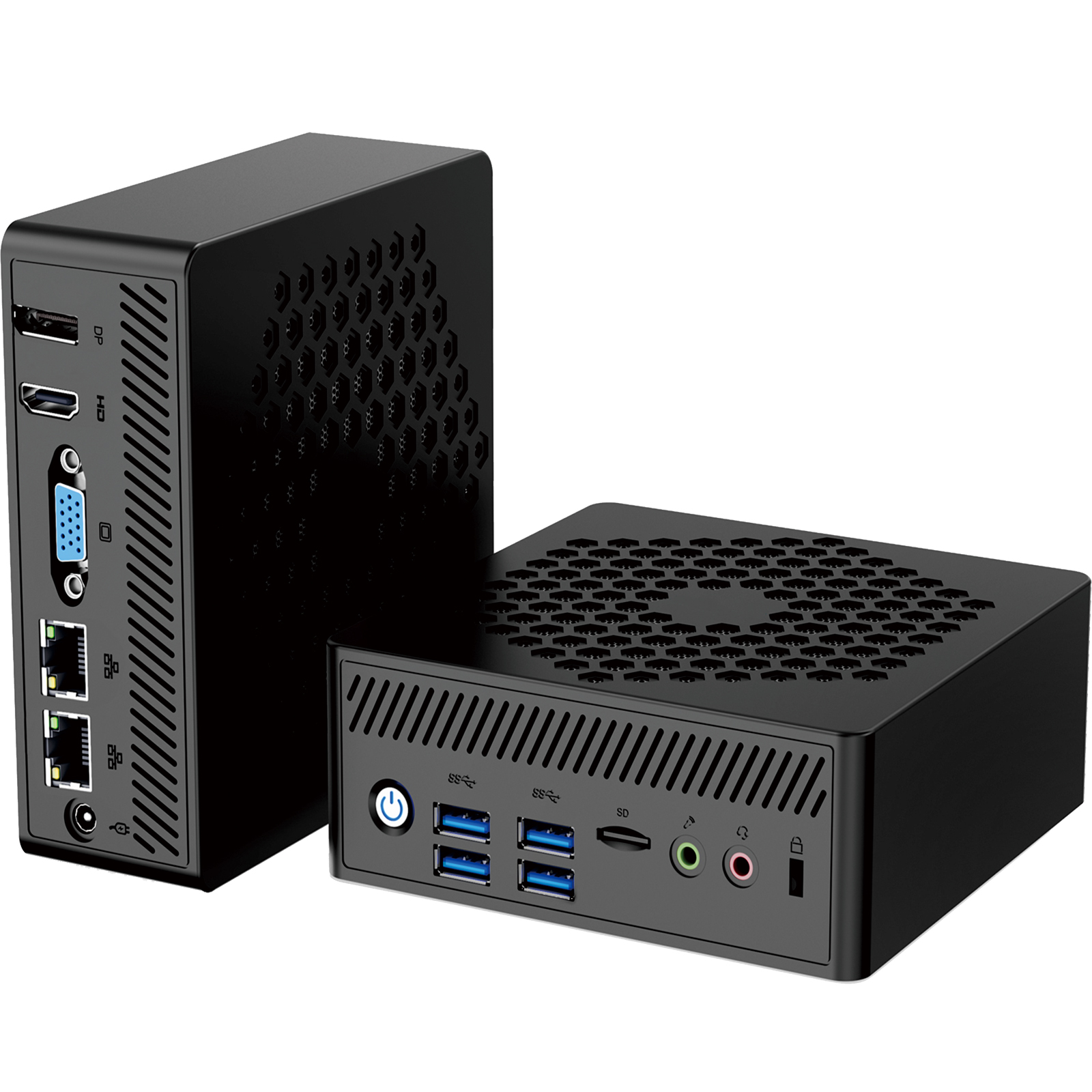

Mini Desktop PC
Compact High-Performance Computer
$179.00
Experience exceptional computing power in a tiny package with this Mini Desktop PC. Ideal for home, office, or entertainment setups, it features multiple USB 3.0 ports, dual LAN, HDMI, VGA, and audio input/output, offering impressive connectivity for all your needs. The robust ventilation ensures reliable performance, making it perfect for multitasking and efficient workspaces.
System Specifications
Processor
Intel® Core™ 13th Gen Twin Lake
N150: 4 Cores / 4 Threads, up to 3.6GHz, 6W TDP
N250: 4 Cores / 4 Threads, up to 3.8GHz, 6W TDP
Optimized for energy-efficient, fanless or low-noise digital signage environments
Graphics
Intel® UHD Graphics
Hardware-accelerated video decoding for smooth 4K playback
Memory
1 × SO-DIMM DDR4 slot
Supports DDR4-2666 / DDR4-3200 MHz
Maximum capacity: 32GB
Display & Video Output
3 × HDMI 2.0 ports
Maximum resolution: 4K @ 60Hz
CEC support (optional)
HDMI EDID Emulator onboard (optional) for stable display detection
Ideal for triple-screen digital signage and video wall applications
Audio
1 × 3.5mm Audio / Microphone combo jack
Networking
2 × 2.5GbE LAN (RJ45)
Powered by Intel® I226 controllers
Supports high-bandwidth content delivery and network redundancy
Wireless Connectivity
4G / 5G LTE Support
1 × M.2 2242 slot (B-Key) for cellular modules
Wi-Fi / Bluetooth
1 × M.2 2230 slot (E-Key) for Wi-Fi & BT module
Storage
1 × M.2 2280 slot (M-Key)
Supports NVMe SSD
Fast boot and rapid media access for signage content
Security
TPM 2.0 hardware support (optional)
Infineon SLB9670 VQ2.0 chip
Suitable for secure OS deployment and enterprise environments
I/O Interfaces
Front Panel
Power Button
Audio / Microphone Jack
4 × USB 3.0 ports
1 × USB-C port
BIOS Recovery Button
System Status LED
Rear Panel
3 × HDMI 2.0
1 × USB 2.0
2 × LAN (RJ45)
DC Power Input (12V–36V)
Side Panel
2 × COM Ports
RS-232 / RS-485
Ideal for industrial peripherals, controllers, and legacy devices
System Management & Control
Watchdog Timer: 1–255 seconds/minutes
RTC Support: Scheduled power on/off via BIOS
Wake-on-LAN
Auto Power On after power recovery
Designed for unattended and remote deployments
Power
Wide Voltage Input: 12V–36V DC
Stable operation in industrial and commercial environments
Mechanical & Physical
Dimensions
160 × 110.8 × 22 mm
Ultra-slim 22 mm thickness
Chassis
Metal enclosure
Enhanced durability and heat dissipation
Mounting Options
VESA Mount Support: 70 × 70 mm / 100 × 100 mm
Wall Mount
DIN Rail Mount
Suitable for behind-display or cabinet installations
Operating System Support
Windows 11
Windows 10
Linux
Included Accessories
AC Power Adapter
HDMI Cable
VESA Mount Bracket
Typical Applications
Digital billboards & LED displays
Commercial digital signage
Video walls
Self-service kiosks
Transportation & retail displays
Industrial HMI terminals
